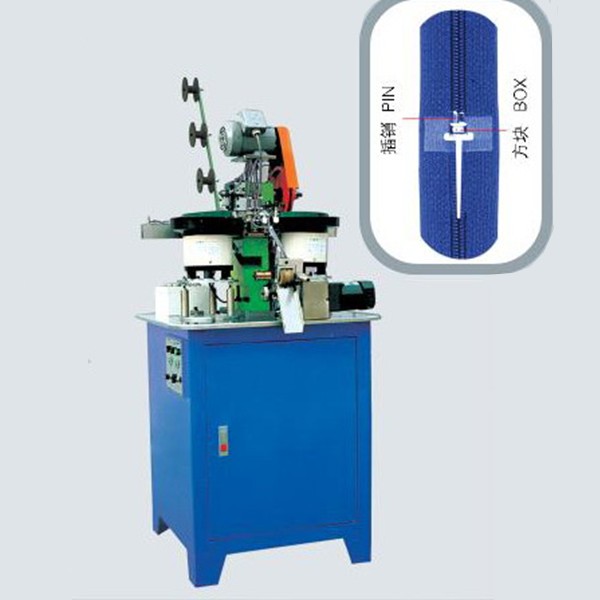

Auto Pin and Box Fixing Machine (TYM-203N)

Auto Pin and Box Fixing Machine (TYM-203N)


Auto pin and box fixing machine is designed to insert and fix pin, box for open-end zipper. Set different processes to adjust the pin and box. Pin and box are level and deformation-free, which index of lateral strength test and holding strength of pull-off test is higher.


1. Pin and box are sent, inserted and fixed automatically.
2. Pin block is compressed firstly, and then fixed well, at last, punched pin holes.
3. One open-end zipper pin and box fixing machinery is only suitable for one size.
4. Main electric components are from Japan, Germany, Taiwan, etc.

Advantages of Auto Pin and Box Fixing Machine

1. Scheduler: firstly, press pin and box on the zipper tape, then use punching pins to punch and fix. (Avoiding backside of pin and box to deformation and unevenness)
2. Punching pin is produced from high quality material and it is durable.
3. Non-stop to add material is available.
4. Material-sending part can be individually adjusted.
5. Sending pin and box automatically can reduce the labor cost and increase efficiency.

Parameters of Open-end Zipper Pin and Box Fixing Machinery

Model TYM-203M
Average Output 1300pcs/60cm/H
Power 1 HP
Voltage of auto pin and box fixing machine 3 Phase 380V
Frequency 50HZ
Dimension (L × W × H) 110 cm × 70 cm × 180 cm
Net Weight 160 kg
